39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe

39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe

39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe Product Description

The friction stabilization anchor is a new type of anchor that provides full-length anchoring and active reinforcement of the surrounding rock.
It consists of an anchor rod and a support.

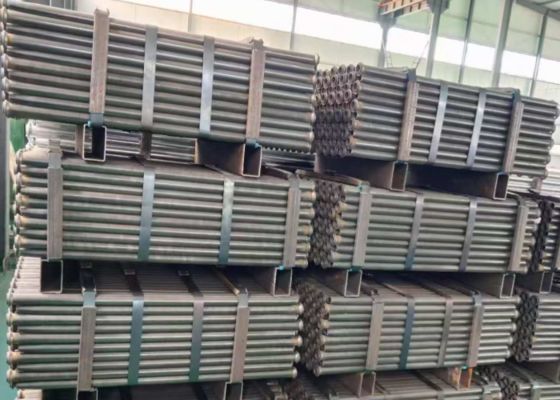

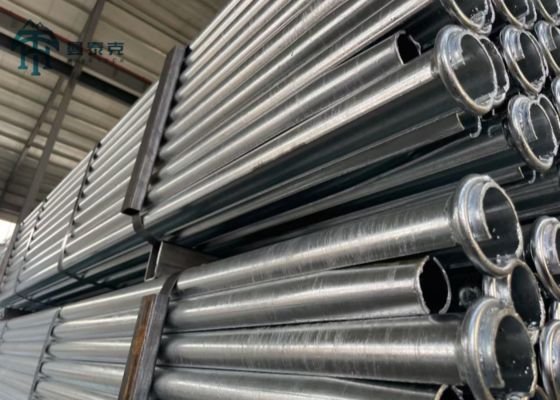

The anchor rod is made of high-strength steel tubing with longitudinal slits. When installed in a borehole slightly smaller than the tubing diameter, the anchor rod immediately applies radial pressure throughout the entire length of the borehole, preventing the surrounding rock from sliding downward. Combined with the support force of the support, the surrounding rock is subjected to three-dimensional stress, thus achieving rock mass stability.

39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe Specification

39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe Instructions

1. Determine the anchor hole location according to the design requirements and drill the hole using a drill.
2. Use compressed air to blow away any rock dust in the hole.
3. Install the anchor plate onto the anchor and use a hammer drill to drive the anchor into the hole.

39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

39mm Mining Rock Friction Bolt Roof Support for Mine Seam Pipe Advantages

1. Simple installation, requiring only impact force;
2. No anchoring agent required;
3. High friction between the anchor rod and the rock;
4. High shear and tensile strength;

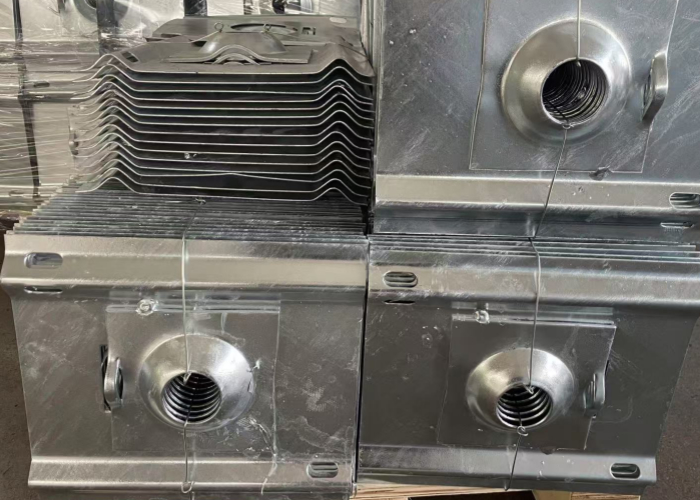

5. Equipped with a high-strength support plate for uniform load distribution;
6. Provides immediate support in both radial and axial directions.

• Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight
• Handling time for an order: Within 10 days supplied from stock
• Shipping way:
• Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
• Bulk order: we suggest by air or by sea.
• Quality Control: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
• After Services:
• a. Our sales team will response for your question within 24 hours (Holidays Excluded)
• b. Technical Support will be available in any time
• c. Free replacement will provide once the failure confirmed caused by our product quality
